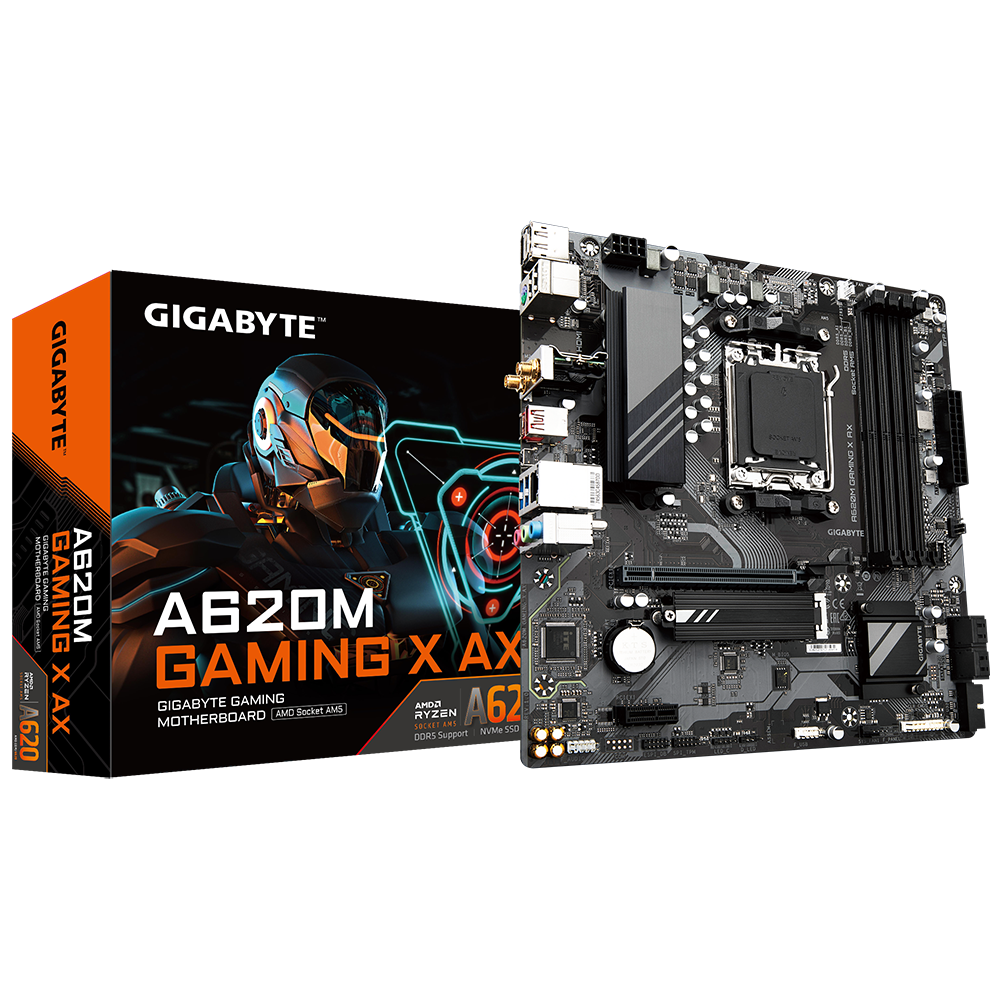

GIGABYTE A620M GAMING X 6400MHz(OC) DDR5 Soket AM5 M.2 HDMI DP mATX Anakart
Marka
Stok Kodu
GIGABYTE-A620M-GAMING-AX
Soket
AM5
Ram Slotu
2
Ram Tipi
DDR5
Görüntü Çıkışı
HDMI / DISPLAYPORT
Boyut
mATX
* 590,94 TL den başlayan taksitlerle!
GIGABYTE A620M H 6400MHz(OC) DDR5 Soket AM5 M.2 HDMI DP mATX Anakart
GIGABYTE A620M DS3H 6400MHz(OC) DDR5 Soket AM5 M.2 HDMI DP D-Sub mATX Anakart
GIGABYTE A620M S2H 6400MHz(OC) DDR5 Soket AM5 M.2 HDMI DP D-Sub mATX Anakart
5.292,00 TL
0 - Yorum Yap / Yorumları Oku
-
CPU
- AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
-
Chipset
- AMD A620
-
Memory
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
-
Onboard GraphicsIntegrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
-
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)
-
Wireless Communication moduleRealtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- (Actual data rate may vary depending on environment and equipment.)
-
Expansion SlotsCPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
-
Storage InterfaceCPU:
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
-
USBCPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x Clear CMOS jumper
-
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 2 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x HDMI port
- 1 x DisplayPort
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 3 x audio jacks
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
-
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash
- Support for Q-Flash Plus
- Support for GIGABYTE Control Center (GCC)
-
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
-
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
-
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
| İşlemci Soket Tipi | : | AM5 |
| Max Ram Desteği | : | 128GB |
| Ram Frekans Hızı | : | 6400 MHz |
| M.2 | : | 1 x M.2 |
| Ram Slot Sayısı | : | 4 |
| Ram Tipi | : | DDR5 |
| USB 3.2 | : | USB 3.2 x 6, USB 3.2 C Tipi x 1 |
| Anakart Boyut | : | Micro ATX |
| Bluetooth | : | Var |
| PCI Express 3.0 | : | 1 x PCI Express 3.0 |
| PCI Express 4.0 | : | 1 x PCI Express 4.0 x16 |
| Sata 6GB/S | : | 4 x SATA 6Gb/s |
| HDMI | : | HDMI x 1 |
| LAN HIZI | : | 10/100/1000Mbps |
| LAN ÇIKIŞ SAYISI | : | 1 |
| SES ÇİPİ | : | Realtek Audio CODEC |
| Ses Kanal Sayısı | : | 7.1 Kanal |
| DİSPLAYPORT | : | DisplayPort x 1 |
| WİRELESS LAN | : | WiFi IEEE 802.11 a / b / g / n / ac / ax |
